compare

Draw train and evaluation metrics in Jupyter Notebook for two trained models.

Method call format

compare(model,
        data=None,
        metrics=None,
        ntree_start=0,
        ntree_end=0,
        eval_period=1,
        thread_count=-1,
        tmp_dir=None,
        log_cout=sys.stdout,
        log_cerr=sys.stderr)

Parameters

Parameter: model

Possible types: CatBoost Model

Description

The CatBoost model to compare with.

Default value

Required parameter

Parameter: metricslist of strings
The list of metrics to be calculated.
Supported metrics
For example, if the AUC and Logloss metrics should be calculated, use the following construction:

['Logloss', 'AUC']

Required parameter

Parameter: data

Possible types: catboost.Pool

Description

A file or matrix with the input dataset, on which the compared metric values should be calculated.

Default value

Required parameter

Parameter: ntree_start

Possible types: int

Description

To reduce the number of trees to use when the model is applied or the metrics are calculated, setthe range of the tree indices to[ntree_start; ntree_end) and the eval_period parameter to k to calculate metrics on every k-th iteration.

This parameter defines the index of the first tree to be used when applying the model or calculating the metrics (the inclusive left border of the range). Indices are zero-based.

Default value

0

Parameter: ntree_end

Possible types: int

Description

To reduce the number of trees to use when the model is applied or the metrics are calculated, setthe range of the tree indices to[ntree_start; ntree_end) and the eval_period parameter to k to calculate metrics on every k-th iteration.

This parameter defines the index of the first tree not to be used when applying the model or calculating the metrics (the exclusive right border of the range). Indices are zero-based.

Default value

0 (the index of the last tree to use equals to the number of trees in the
model minus one)

Parameter: eval_period

Possible types: int

Description

To reduce the number of trees to use when the model is applied or the metrics are calculated, setthe range of the tree indices to[ntree_start; ntree_end) and the eval_period parameter to k to calculate metrics on every k-th iteration.

This parameter defines the step to iterate over the range [ntree_start; ntree_end). For example, let's assume that the following parameter values are set:

  • ntree_start is set 0
  • ntree_end is set to N (the total tree count)
  • eval_period is set to 2

In this case, the metrics are calculated for the following tree ranges: [0, 2), [0, 4), ... , [0, N)

Default value

1 (the trees are applied sequentially: the first tree, then the first two
trees, etc.)

Parameter: thread_countint
The number of threads to use.

Optimizes the speed of execution. This parameter doesn't affect results.

-1 (the number of threads is equal to the number of processor cores)

Parameter: tmp_dir

Possible types: String

Description

The name of the temporary directory for intermediate results.

Default value

None (the name is generated)

log_cout

Output stream or callback for logging.

Possible types

  • callable Python object
  • python object providing the write() method

Default value

sys.stdout

log_cerr

Error stream or callback for logging.

Possible types

  • callable Python object
  • python object providing the write() method

Default value

sys.stderr

Examples

from catboost import Pool, CatBoostClassifier

train_data = [[0, 3],
              [4, 1],
              [8, 1],
              [9, 1]]
train_labels = [0, 0, 1, 1]

eval_data = [[1, 3],
             [4, 2],
             [8, 2],
             [8, 3]]

eval_labels = [1, 0, 0, 1]

train_dataset = Pool(train_data, train_labels)

eval_dataset = Pool(eval_data, eval_labels)

model1 = CatBoostClassifier(iterations=100, learning_rate=0.1)
model1.fit(train_dataset, verbose=False)

model2 = CatBoostClassifier(iterations=100, learning_rate=0.3)
model2.fit(train_dataset, verbose=False)

model1.compare(model2, eval_dataset, ['Logloss'])

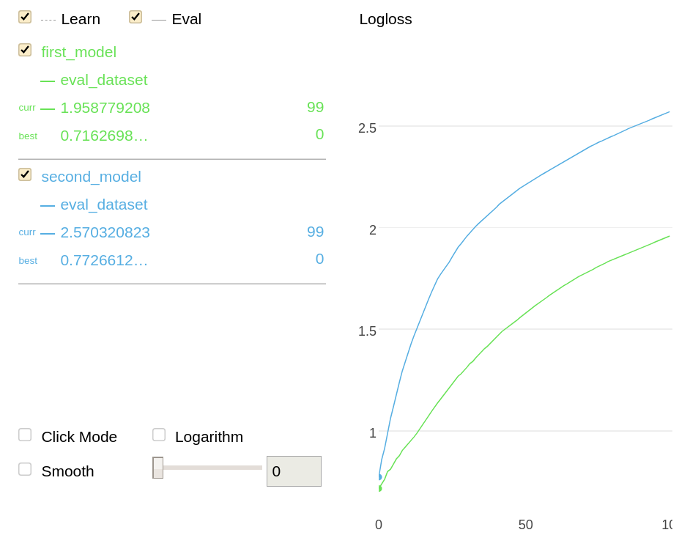

The following is a chart plotted with Jupyter Notebook for the given example.
